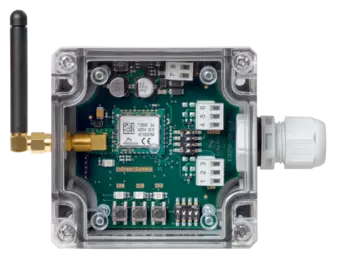

ems4.ENO1B
Communication interface for the integration of EnOcean
The ems4.ENO1B bi-directional gateway module acts as an interface with EnOceancompatible sensor and actuator modules. This module can be used to process data from wireless sensors in the ems4 / ems2 / ems5 systems. The bi-directional functions of this gateway also enable superordinate control of wireless receivers via the ems4 / ems2 /ems5 system. The gateway only uses those wireless sensors that the user has defined using the configuration tool (webCADpro / iBASUite.builder) to evaluate and forward the data. In learning mode, the user can assign the gateway module to the desired switching actuators. This enables the user to control the switching of these actuators via the user program of the Automation station and therefore via the management lever. Thanks to the transparent data interface that the gateway offers between automation stations and EnOcean transmitters, it is possible to use wireless modules from various manufacturers of the EnOcean Alliance without having to make any adjustments to the gateway.
- Voltage:24 V DC +/- 10 %
- Power consumption:1 W
- Electrical connection:Via screw terminals for wires up to 1.5 mm²
- Housing:Installation housing
- Dimensions:82 x 80 x 55 mm
- Weight:Approx. 175 g
- Protection class:IP42
- Operating temperature:+5...+45 °C
- Ambient humidity:Up to 85 % rh. without condensation acc. to VDE 0160, EN 50178, Class 3K3
- Standards / rules / guidelines / approvals:See EU Declaration of Conformity
- System bus:CAN bus
- Interfaces:
- CAN bus (MultiLink), EnOcean
- Wireless system 868 MHz
- Number of EnOcean-devices: 128 sensors and actuators
