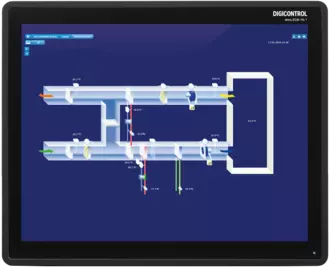

ems.EC6-10.1
Touch panel 10.1"
Installation in control cabinet doors and in rooms
10.1 inch display for convenient operation of automation stations, based on an HTML5-capable embedded web server. An integral component is the ability to independently perform all operating and monitoring functions via the embedded web server with “onboard MCE” functions contained in the automation stations. Furthermore, the web touch panel is used for the graphical display of plant diagrams wiht dynamic overlays. The WEBtouch panel is supported by the automation station type ems5.CP05E or ems2.CP14D as well as ems2.R4D1B.
- Voltage:24 V DC +/- 15 %
- Power consumption:11 W
- Mounting:
- Front panel mounting with rear mounting brackets
- 264.0 x 180.0 mm
- Housing:
- Silicone rim
- ABS plastic bach casing
- tempered glass front - reflection-reduced
- Dimensions:Approx. 278,0 x 203,6 x 33,3 (without installation frame) mm
- Weight:approx. 2100 (without installation frame) g
- Protection class:IP65 front, IP40 rear
- Operating temperature:-10...+60 °C
- Ambient humidity:10...90 % rh., non-condensing
- Standards / rules / guidelines / approvals:See EU Declaration of Conformity
- Display:
- Graphics resolution WXGA / 1280 x 800 pixels / 10.1”
- 24 bit / 16.7 M colours
- Capacitive Multi touch technology
- 256.5 mm diagonal
- Active display area 217 x 136 mm
- LED backlight
- Interfaces:Ethernet 10/100 MBit/s
- Firmware version when using ems5 controller:iBASuite.Builder 2.41 and higher
- Firmware version when using ems2 controller:No restrictions
