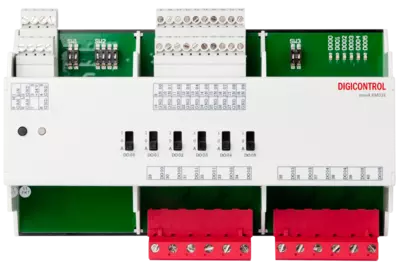

ems4.KM02E

Multifunction module with multi-functional inputs and outputs
with integrated LOD
DIN rail mounting

The ems4.KM02E is equipped with 10 multifunctional inputs which serve, depending on the specific needs, as analogue, digital or temperature sensor input. Temperature sensors of type PT1000, NI1000 (DIN) or NI1000 (TKR5000) can be connected. The analogue (0...10V) signal can additionally be scaled. If the inputs is used as digital input, it can be differentiated between a switching signal (ON/OFF) and a push button. In addition, there is the possibility to switch the digital outputs (DIO) via the digital inputs (DII). In addition to the input signals the ems4.KM02E module has 6 digital outputs. The control of the digital output by a different input module (DE0xB) is possible. The state of the digital outputs is displayed in the status LEDs on the module. All physical outputs can be changed with the local priority control. Therefore, the slide switch outputs with the positions AUTO-0-I are available. The positions of the slide switch can be commicated through the ems4.KM02E via the CAN bus to the connected components. The relay outputs can be used as a 3-phase switching signal. The configuration is done via DIP switches. The relay outputs can be configured as a 3-point output or shutter control. The individual adjustment of the PLC is done by different module parameters.

  • Voltage:
    24 V DC +/- 10 %
  • Power consumption:
    5 W (all relays switched on)
  • Electrical connection:
    2.5 mm² (Relay outputs), 1.5 mm² (all other screw terminals)
  • Mounting:
    DIN rail mounting
  • Housing:
    Plastic housing
  • Dimensions:
    161.6 x 110 x 62.2 (incl. clamps) mm
  • Weight:
    370 g
  • Protection class:
    IP20
  • Operating temperature:
    +5...+45 °C
  • Ambient humidity:
    Up to 85 % rh. without condensation acc. to VDE 0160, EN 50178, Class 3K3
  • Standards / rules / guidelines / approvals:
    See EU Declaration of Conformity

  • Inputs:
    • 10 universal inputs, freely configurable as:
    • PT/NI1000, resolution 12 bit, (temperature: -50 °C...+150 °C)
    • Digital inputs 24 V DC
    • 0...10 V DC, resolution 12 Bit
  • Outputs:
    • 6 relay outputs 230 V AC, 16 A ohmic load
    • (6 x status LED - switching status of relay outputs)
    • AC1: 16 A/250 V AC
    • AC3: 8 A/250 V AC
    • 2x 3-phase (configurable via DIP switches)
    • Slide switch for local priority operating level (LOD) AUTO – 0- 1
  • Current measurement relay:
    2x, I2.5 = 0…16 A, resolution approx. 15 mA
  • Local override:
    • Relay outputs: Operation via slide switch (Manual- Off-AUTO)
    • 6 inputs for feedback of all switch positions of the local override operation level
  • LED display:
    • 6x Status LED for relay outputs (green)
    • 1x CAN bus activity (red/green)
  • Function:
    Shutter control / 3 point, the electrical interlock of the handsets is configurable
  • System bus:
    CAN bus
  • Interfaces:
    LIN, CAN
  • Other remarks:
    Exposed circuit parts have to be treated according to the ESD standard!

Type
Description
ems4.HBUS-161

Mounting rail bus connector HBUS 161.6
